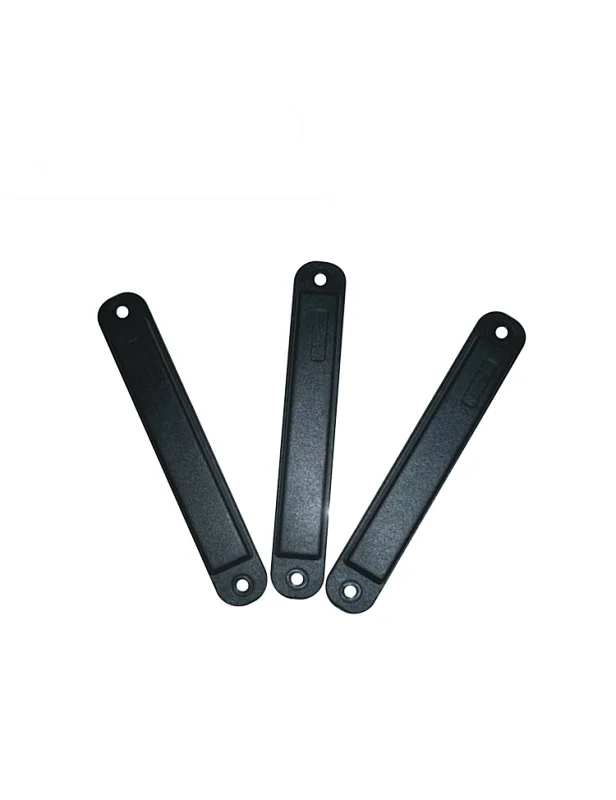

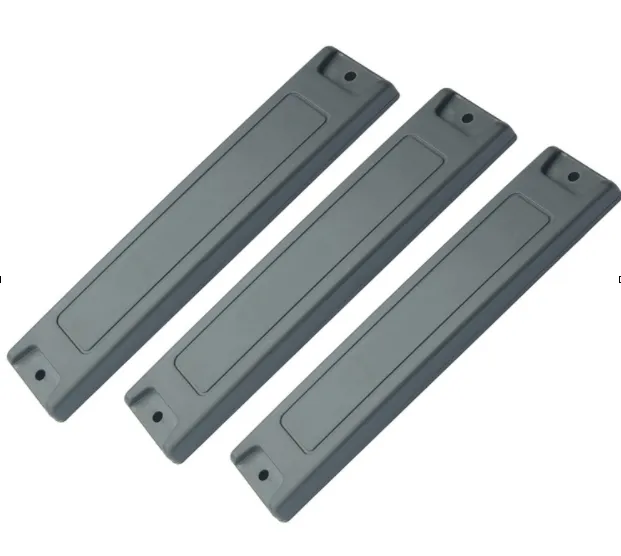

ABS/PCB Adhesive Anti Metal RFID UHF Tag
ABS/PCB Adhesive Anti Metal RFID UHF Tag
Quantity

ABS/PCB Adhesive Anti Metal RFID UHF Tag

Advantages

* It has good radio-frequency performance when it is installed on the surface of metal or the surface of non-metal;

* 100% test for the writing in memory;

* Reliable test for material and design

Main Features

* It could have printed paper label on the surface of anti-metal tag;

* Laser printing number could be available;

* Convenient method of installing;

* Weak-acid resistant, weak-alkali resistant, waterproof;

Application

* Storage shelf and vehicles management

* Metal container in man-sized and middle-sized;

* Power boxes and power facilities management;

* Outdoor or indoor metal office facilities management

Specifications

* Protocol: EPC Class1 Gen2; ISO18000-6C

* Work Frequency: 902-928Mhz(the frequency could be customized)

* Chip Type: U-code 7M or U-code 8

* Memory: EPC 96 bits, user memory 32 bits

* Function of R/W: Read/Write (Rewriteable)

* Data Storage: 50 years

* Quality Guarantee: 1 year

* Main Material: ABS

* Size: 155mm*30mm*10mm

* Woking Temperature: -25°~ 70°

* Storage Temperature: -40°~ 70°

* Storage Relative Humidity: 5%~95%

* Installation: Screw, Rivet, Strong Glue, Zip Ties;

* Package: Carton

* Surface Color: Could be customized if the quantity is more than 5000pcs

* Drop test: 200 times drop with 1 meter height

* Alcohol test: Pass the test with the alcohol at 95% concentration

* Gasoline test: Pass the test with #92 gasoline

* Low and high temperature test: -40°~70°, 7 times Alternating cycles of high and low

temperatures

* IP: IP67

* Fixed reader(On metal): More than 12 meters (4W EIRP, Alien 9900 fixed reader)

* Handheld reader (for metal): More than 8 meters (Alien 9011 handheld reader in open outdoor

space)

* Handheld reader (for non-metal): More than 3 meters (Alien 9011 handheld reader in open

outdoor space)
