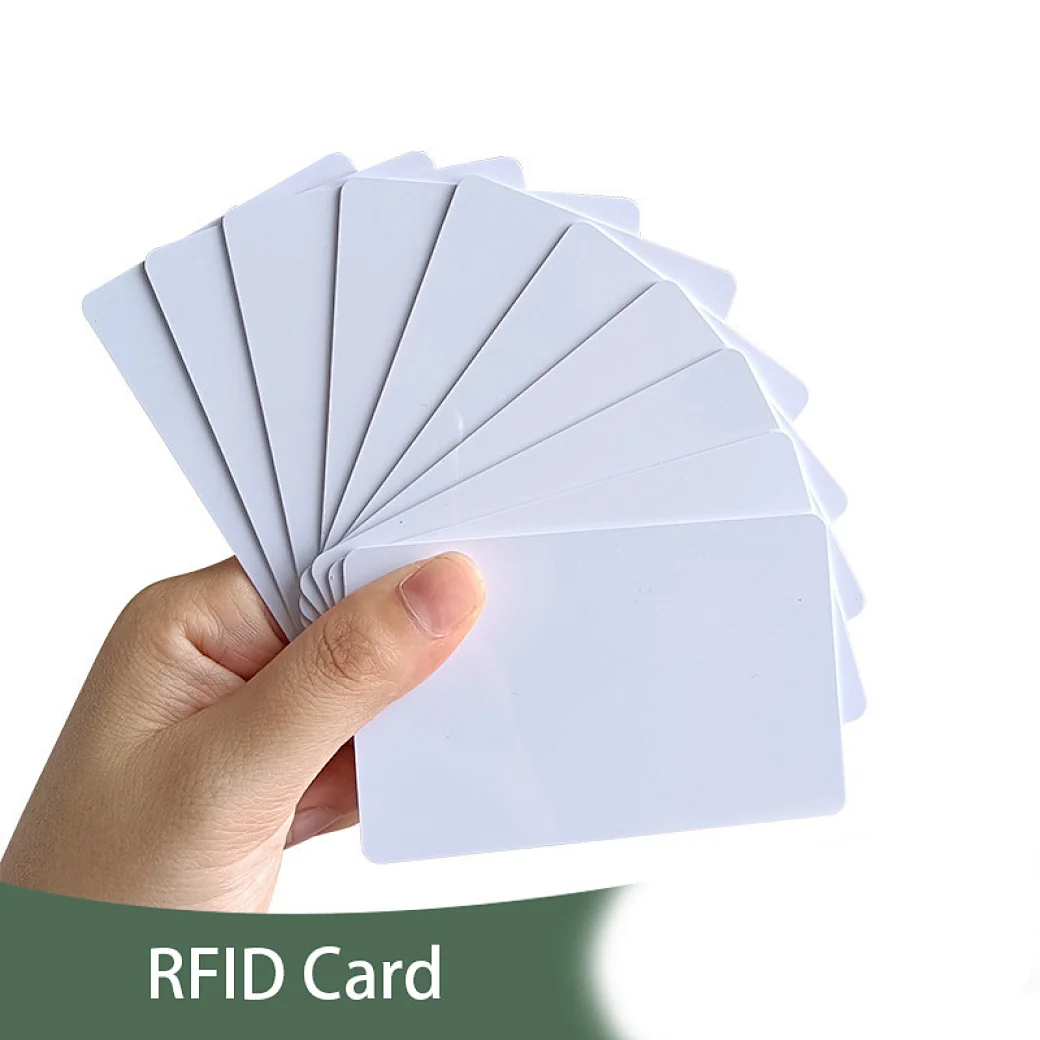

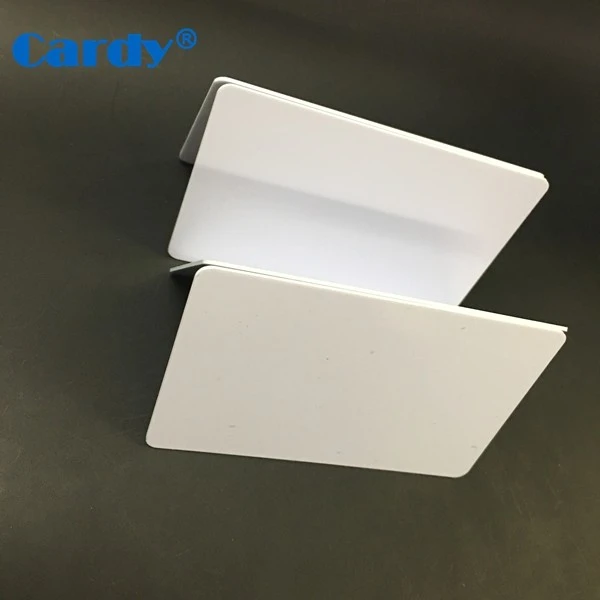

Plastic White RFID Cards
F08
minimum order
1 piece
Country of Origin
Shenzhen
Quantity
- Special Features:Waterproof / Weatherproof
- Communication Interface:RFID, NFC
- Place of Origin:Guangdong, China
- Brand Name:OEM
- Frequency:13.56Mhz, 13.56MHz
- Keyword:RFID/NFC Card
- Material:PVC/PET/ABS
- Size:85.5*54mm/customized
- Printing:CMYK offset printing/Screen printing/Digital printing
- Surface:Glossy, matte or frosted
- Number printing:UV/Jet dot/Thermal transfer/Laser engrave
- Application:Access control, Bank, Traffic, Club, Gym, etc.
- Other service:Encoding
- Chip:F08/N)Tag213/tag215/tag216/2k/4k/8k/tk4100/t5577 ect.
Cardy® is a large supplier of rfid hotel key cards,which can be used for Ving, Salto, Adel,Acculock,Betech,Saflok,Onity… hotel key cards. we also support to customize Wooden, bamboo ,Paper RFID key cards for high end hotels. Cardy® stocks all the latest RFID cards from the world's leading manufacturers. Additionally, our experienced security experts look forward to assisting you with your specific RFID application. Our team of qualified chip card experts is on call to help you find the best solution for your RFID needs.
Products Description
Material | PVC/PET/ABS | ||||||
Size | 85*54mm or customized | ||||||
Chip | S50 , F08 , MIFARE Ultrlight C , MIFARE DESfire EV1, MIFARE DESfire EV2 , MIFARE DESfire EV3 , H3 , FM4442 , FM4428 , H3 ,FM11RF32 , H9 etc. | ||||||
Frequency and reading distance | LF, 125KHz, Reading distance ≤ 6cm HF, 13.56MHz, 1cm ≤ Reading distance≤ 5CM UHF, 860-960KHz, 1M ≤Reading distance ≤ 10M | ||||||
Crafts | a. Glitter gold/silver background b. Loco 300oe/600oe magstripe , Hico 2750oe/4000oe magstripe c. Thermal printing/UV spot logo /DOD/Inkjet printing serial/Laser engraving e. serial or UID numbers d. Magnetic stripe(300oe, 2750oe), Barcode e. Encoding and Encryption, Chip encoding f. Anti-metal layer , Back adhesive , Epoxy cover | ||||||
Applications | Corporations, Hotel, Bank, Supermarket, Club/SPA Membership Management, advertisement, Health care, School, Campus one-card, Loyalty card, Bus- stored value card, Travel, Public transportation, Access Control & Security, freeway collection toll,Parking and Payment, Time Attendance, Event ticketing,Residential management etc. | ||||||
Packaging | Standard size card packing: 500pcs/inner box, 2000pcs or 3000pcs/ctn. Irregular size(except the standard size): 100pcs/Opp bag and then in carton, or packed per your request. | ||||||
Certification | ROHS/CE/ISO | ||||||
Lead time | 7-10 Work days | ||||||
RFID smart cards are secure because any RFID reader cannot read the data from any smart card. The reader application would be required to have the secret keys that are used for encrypting data in the card. The card might block any attempt to access data on the chip if the encryption keys do not match. Similarly, communication between the card and the reader can also be encrypted. The level of security can be decided based on the application where it is used. Data can only be written into the smart card memory by someone who has the authority and knows the keys to the card. Following is a summary of the sequence of events that take place when the card is brought near the reader. ⦁ Energy is transferred to the card that powers the chip inside the card. ⦁ Clock signals are transferred from reader to card ⦁ Data transferred from reader to card ⦁ Data transferred from card to reader.
Product Process
RFID chips options
We have many kinds of style for choosing, IC card, magnetic stripe card, differrent frequency 125KHz,13.56MHz
and 860-960MHz, and available chips as below are our style for you to choose
and 860-960MHz, and available chips as below are our style for you to choose
Frequency | Protocol | Chips available | Memory | Supplier |
860~960 MHz | EPC Class1 Gen | H3 | 96 bits/512 bits | Alien |
H4 | 128 bits/128 bits | |||
H9 | 96 bits/688 bits | |||
M4E | 496 bits/128 bits | Impinj | ||
M4QT | 128 bits/ 512bits | |||
M4D | 128 bits/32 bits | |||
M4I | 256 bits/ 480 bits | |||
MR6 | 96 bits/ 0 bits | |||
MR6-A | 96 bits/ 0 bits | |||
MR6-P | 128 bits/32 bits | |||
M730 | 128 bits/0 bits | |||
M750 | 96 bits/32 bits | |||
M770 | 128 bits/32 bits | |||
M775 | 128 bits/32 bits | |||
M780 | 496 bits/128 bits | |||
M781 | 128 bits/512 bits | |||
Ucode 7 | 128 bits/0 bits | NXP | ||
Ucode 7m | 128 bits/32 bits | |||
Ucode 7xm | 448 bits/1024 bits | |||
Ucode 8 | 448 bits/2048 bits | |||
Ucode 8m | 128 bits/ 0 bits | |||
Ucode 9 | 96 bits/0 bits |
Remark :
MIFARE and MIFARE Classic are trademarks of NXP B.V.
MIFARE DESFire are registered trademarks of NXP B.V. and are used under license.
MIFARE and MIFARE Plus are registered trademarks of NXP B.V. and are used under license.
MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license.
MIFARE and MIFARE Classic are trademarks of NXP B.V.
MIFARE DESFire are registered trademarks of NXP B.V. and are used under license.
MIFARE and MIFARE Plus are registered trademarks of NXP B.V. and are used under license.
MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license.
Application
Access control and security systems
can use electronic tags, and one card can be used for multiple purposes, such as work permits, access permits, parking permits, hotel accommodation permits, and even travel passports. The use of electronic tags can effectively identify personnel, carry out security management and efficient charging, simplify entry and exit procedures, improve work efficiency, and effectively carry out security protection.
RFID Smart cards
have many applications not only in the financial and payment industry, but also in gyms, restaurants, libraries, playgrounds, identity management, access control, logistics, healthcare, transportation, parking systems, mobile communications, and more.
Why Choose Us ?
Advantage
* 18+ YEARS
Self-owned brands (KD, CARDY) has a good reputation in IoT industry since 2004
* LARGE PRODUCTION CAPACITY
100 million pcs products per year
* R&D
Devotes more than 30% of the company's profits to R & D and improve equipments
30 patents and software copyrights
* QUALITY CONTROL
100% inspection for the IPQC and QA
* SHORT PRODUCTION TIME
24 hours uninterrupted production line with three shifts
1 million products can be finished within 2 weeks
* ORIGINAL FACTORY PRICES
8000㎡factory with full automatic production lines
* PREMIUM SERVICES
24 hours online services
Trade assurance
* 18+ YEARS
Self-owned brands (KD, CARDY) has a good reputation in IoT industry since 2004
* LARGE PRODUCTION CAPACITY
100 million pcs products per year
* R&D
Devotes more than 30% of the company's profits to R & D and improve equipments
30 patents and software copyrights
* QUALITY CONTROL
100% inspection for the IPQC and QA
* SHORT PRODUCTION TIME
24 hours uninterrupted production line with three shifts
1 million products can be finished within 2 weeks
* ORIGINAL FACTORY PRICES
8000㎡factory with full automatic production lines
* PREMIUM SERVICES
24 hours online services
Trade assurance
Company Profile
Shenzhen Cardy Intelligent Co.,Ltd Headquartered in Nanshan District, Shenzhen, Cardy was established in 2004. It is a manufacturer specializing in the R&D, production and sales of RFID/NFC cards, tags, key-chains, wristbands and card readers of its own brand (Cardy® ) , It is a first-class supporting manufacturer and a provider of solutions to the Internet of Things industry. We have a modern production base of 8,000 square meters, 33 Full- Automatic Inlay Production Lines, Independent COB Binding Department, Full- Automatic Punching Machine, Full-Automatic Laminator, Capable of producing and an annual production capacity of more than 100 million pieces.Well- Equipped Machine, Professional Workers and Strict QC can ensure our goods quality ! With excellent quality, reasonable price, innovative design and effective service, our products have won a good reputation all over the world.
Packaging & Shipping
You can choose to ship with DHL,UPS, TNT,FEDEX,EMS door delivery service, also you can choose to ship by air cargo and sea cargo. It depends on your need.
FAQ
1. Why consult us?
· We have 18 years of factory, rich experience and strong customization ability to meet your needs to the greatest extent. · We have long-term and stable material suppliers with reliable sources and strong timeliness. · Strict QC factory - There are at least 4 QCs in the production process to ensure product performance. · Strong technical team - solve problems quickly, creatively design new products, the latest RFID products come from us. 2. Can you provide free samples? · Yes, we are happy to send you some samples for your reference. Samples are free, you just need to deal with shipping. 3. Can you customize products? · All our products can be customized including material, size, thickness and logo. We can serve ODM and OEM. To avoid mistakes,We recommend that customers can provide design files in formats such as AI or PDF. 4. What is the production time? · Sample time: 1-5 days
2. Bulk order 7-15 days . For large orders, please contact our seller .
Note: Our factory can provide flexible production time, if you have requirements for production time,Please contact us and we can support your schedule well. 5. How to solve the quality problem of the product? · Please don't worry, we will check them one by one before shipment, our factory do 100% QC of products to make sure 100% products are perfect quality before shipment, make sure the quality before you receive it.
If there is a problem after sale, if a large number of products cannot be used,
we will always solve the problem with you.
