13.56MHz FM11 Label /Sticker /Dry/Wet Inlay
FM11
Wet inlays are inlays that have an adhesive backing with a clear or colored topsurface of PVC,PET or paper, the PVC or PET wet inlays are commonly used to make “RFID Labels” where the inlay is placed on the back of the label with the adhesive side away from the label side so that the label has continuous adhesive. PLacement of the wet inlay on the label is very specific to each RFID printer in order to be programmed correctly by the printer and also to minimize the risk of damaging the RFID inlay while in the printer.

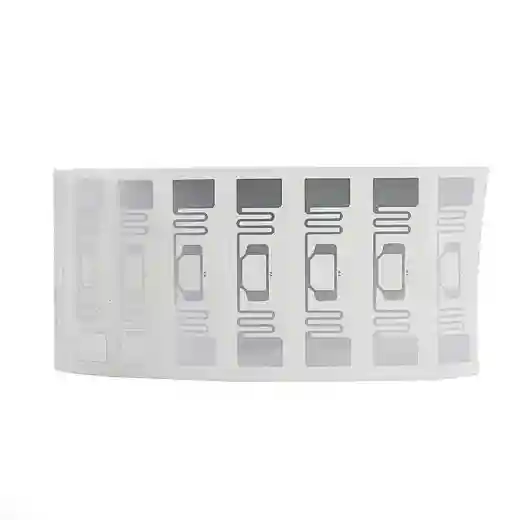

RFID Dry Inlay are inlays that are attached to the substrate backing material commonly called the web.
RFID Dry Inlay are inlays that are attached to the substrate backing material commonly called the web.
minimum order
1 piece
Country of Origin
Shenzhen
Quantity
- Place of Origin:Guangdong, China
- Brand Name:Cardy
- Type:Tag, Inlay, RFID Tag /Label /Sticker, Passive
- Special Features:Other
- Network:None
- Application:Indoor, Asset Management/Supply Chain/Logistic
- Product name:HF Inlay
- Frequency:13.56MHz
- Chip:F08
- Material:Artpaper /PVC/PET
- Printing:CMYK offset printing, silk screen printing etc.
- Antenna size:44*44mm etc.
- Craft:Encoding , UID printing, barcode, QR code etc.
- Personalization:Available

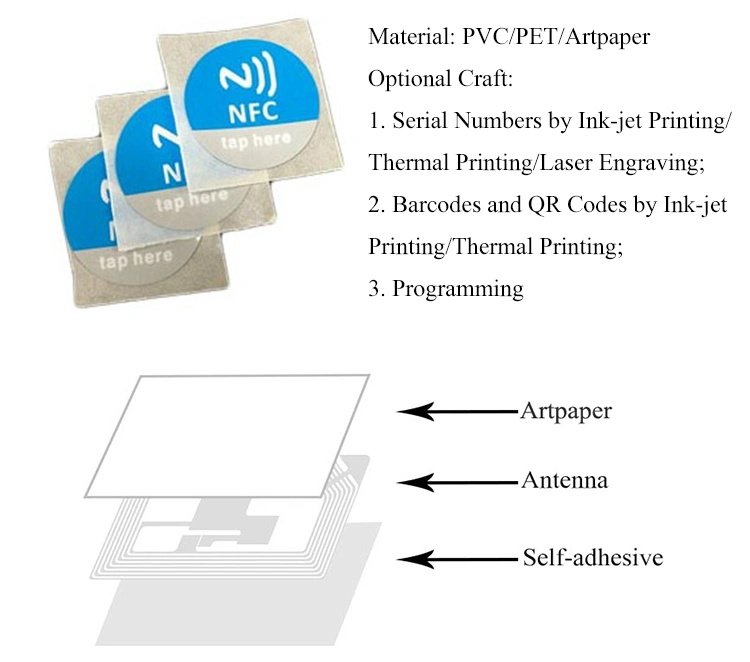

Product Structure & Description
Material | Paper/PVC/PET | ||||||
Size | customized | ||||||
Thickness | 0.35mm or customized | ||||||
Chip | Refer to RFID chips options as below. Please also consult our sales person for more information. | ||||||
Frequency and reading distance | LF, 125KHz, Reading distance ≤ 6cm HF, 13.56MHz, 1cm ≤ Reading distance≤ 5CM UHF, 860-960KHz, 1M ≤Reading distance ≤ 10M | ||||||
Printing | Offset Printing/CMYK printing (Heidelberg offset printing machine) | ||||||
Crafts | a. Anti-metal layer , 3M adhesive , b. Serial or UID numbersprinting d. Encoding and Encryption | ||||||
Corporations, Hotel, Bank, Supermarket, Club/SPA Membership Management, advertisement, Health care, School, Campus one-card, Loyalty card, Bus- stored value card, Travel, Public transportation, Access Control & Security, freeway collection toll,Parking and Payment, Time Attendance, Event ticketing,Residential management, | |||||||
2000pcs or 3000pcs/reel for tags 5000pcs/Reel for inlay(Dry inlay or Wet inlay ) Anti-static bag vacuum packing, waterproof, Anti-static, anti-collision | |||||||
Certification | ROHS/CE/ | ||||||
Lead time | 3-5 Working days | ||||||
RFID chips options
Frequency | rotocol | Chips available | Memory | Supplier |
13.56MHz | MIFARE Classic® 1K | 1K byte | ||
MIFARE Classic® 4K | 4K byte | |||
MIFARE Ultralight® C | 192 byte | |||
MIFARE Ultralight® EV1 | 80 bytes/162 byte | |||
MIFARE® DESFIRE® EV3 2K | 2K bytes | |||
MIFARE® DESFIRE® EV3 4K | 4K bytes | |||
MIFARE® DESFIRE® EV3 8K | 8K bytes | |||
MIFARE Plus® X 2K | 2K bytes | |||
MIFARE Plus® X 4K | 4K bytes | |||
MIFARE Plus® S 2K | 2K bytes | |||
MIFARE Plus® S 4K | 4K bytes | |||
MIFARE Plus® SE | 1K bytes | |||
NFC Forum | NTAG® 213 | 144 bytes | ||
NTAG® 215 | 144 bytes | |||
NTAG® 216 | 888 bytes | |||
NTAG® 424 DNA | 416 bytes | |||
18000-3M1 NFC Forum T5T | ICODE® SLIX | 896 bits | ||
ICODE SLIX 2 | 2528 bits | |||
ICODE® SLIX-S | 1280 bits |
Remark :
MIFARE and MIFARE Classic are trademarks of NXP B.V.
MIFARE DESFire are registered trademarks of NXP B.V. and are used under license.
MIFARE and MIFARE Plus are registered trademarks of NXP B.V. and are used under license.
MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license.
MIFARE and MIFARE Classic are trademarks of NXP B.V.
MIFARE DESFire are registered trademarks of NXP B.V. and are used under license.
MIFARE and MIFARE Plus are registered trademarks of NXP B.V. and are used under license.
MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license.

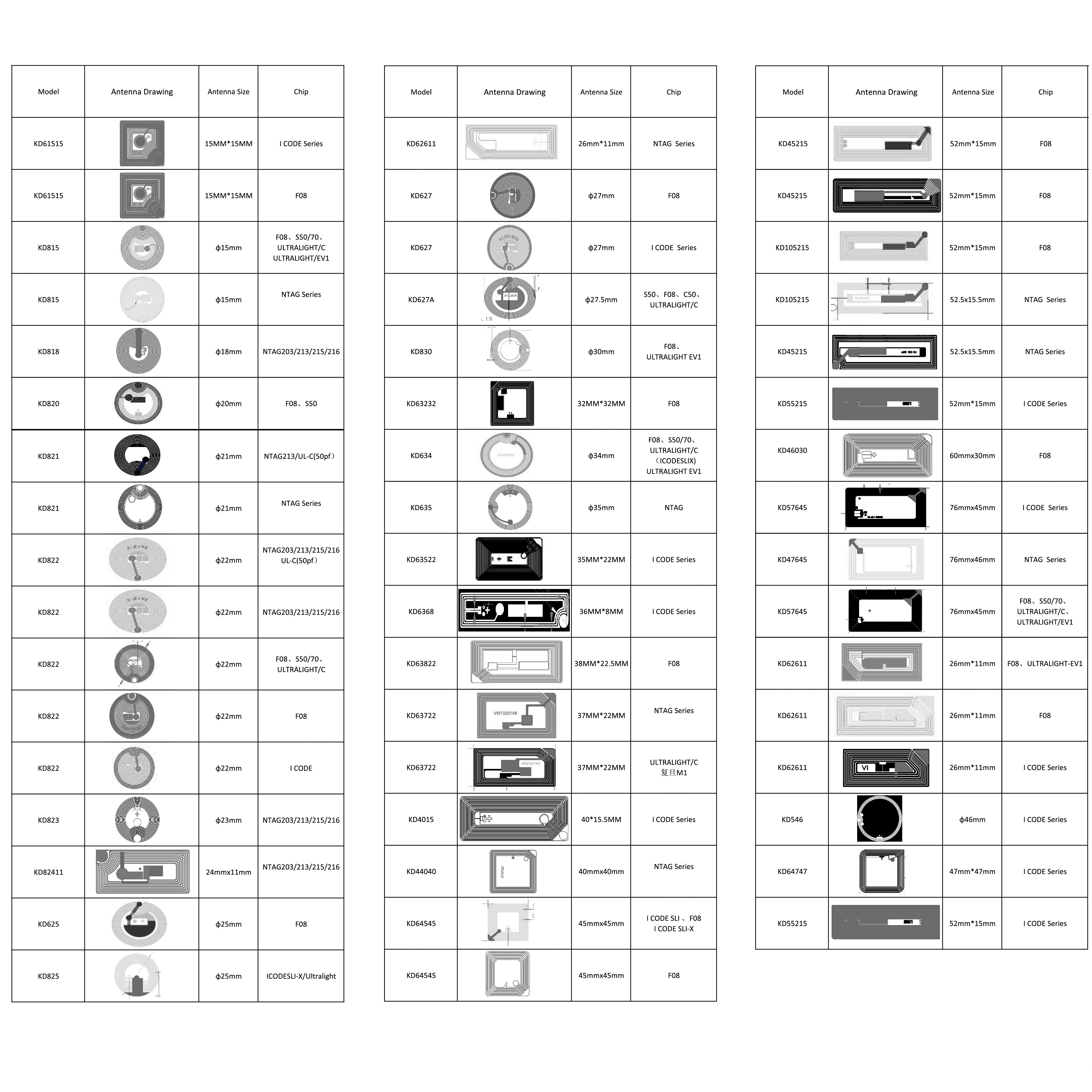

Antenna for choosing
